CCTV Products & Accessories




The color PiPc is a state-of-the-art picture in a picture device designed specially for the security industry. Automatic inset picture enabling or swapping the pictures full-screen can be initiated by an alarm input. Simple front panel push buttons can also turn on or off the inset picture, swap pictures, and even freeze the picture which can be positioned anywhere

DTT - Time/Date/Titler

The DTT is the solution for inserting time, date, and camera information onto a VCR, monitor, or video printer. The ultra small unit has a two-line display and with a low power consumption design making it perfect for mobile or covert applications.



DTT -Pro

The DTT-Pro is advancement to the DTT while maintaining the same size and form factor.  The DTT-Pro can insert T/D and Title information into any video signal but also generator a Red or Blue background with T/D Title information without video present. Video Loss detection is also programmable with or without capturing the T/D of the loss event. Full programming with or without video and full grayscale with border text programmable

| Manual |


VECA

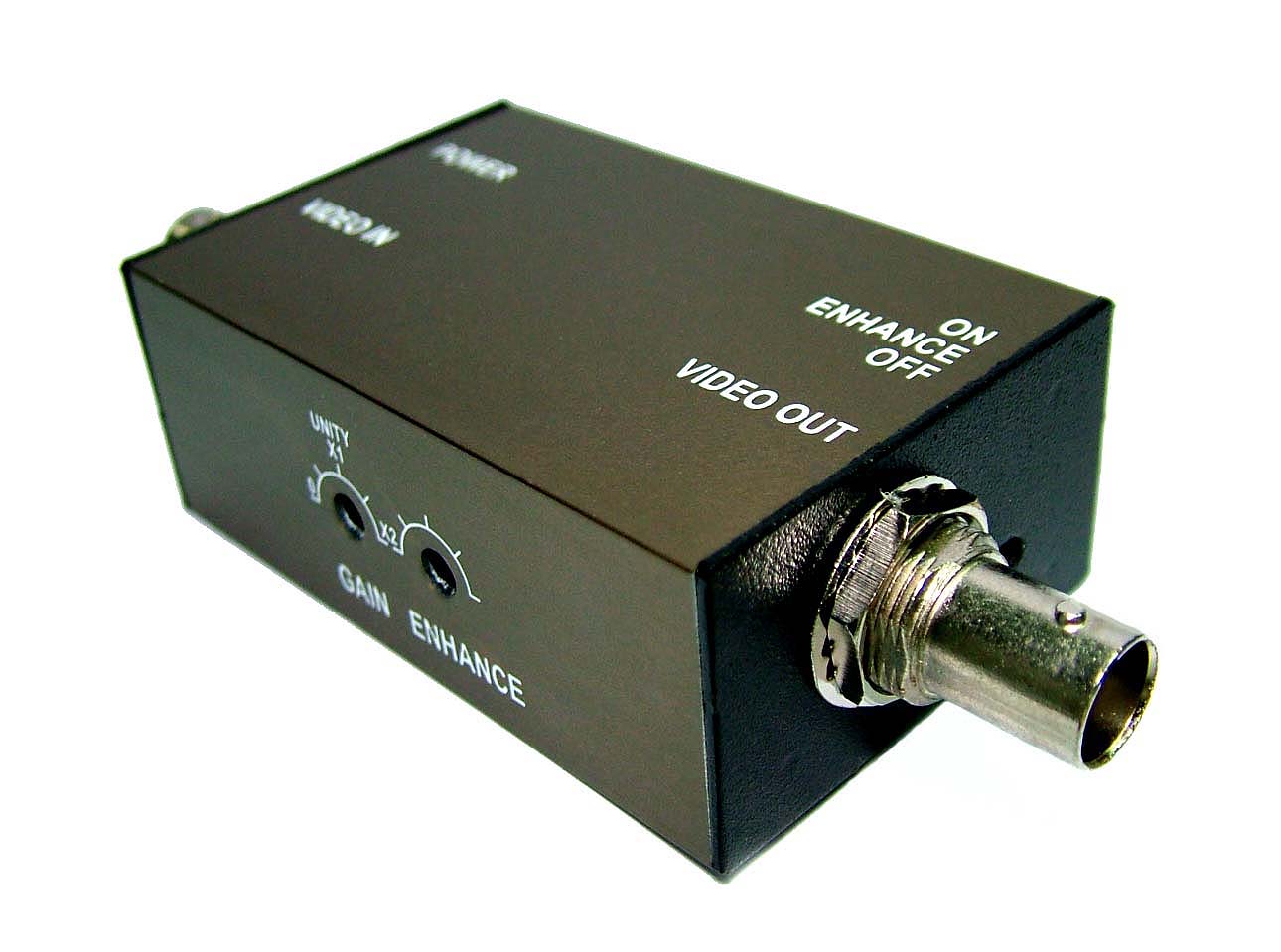

The VECA is an active inline transmission device mounted on the camera to compensate for video degradation due to long BNC cables. There are two controls on the VECA, one for Enhancing Color and the other for Gain. Operates on 12VDC.

| Manual |



The Premade Cable Adapter is designed to use off the shelf premade cables to install CCTV equipment and connect them to a single 12VDC wall adapter without any wire cutting or splicing. This adapter has an individual power LED and short circuit protection for each camera. A master fused power switch and power LED for all four cameras.

| Cutsheet |

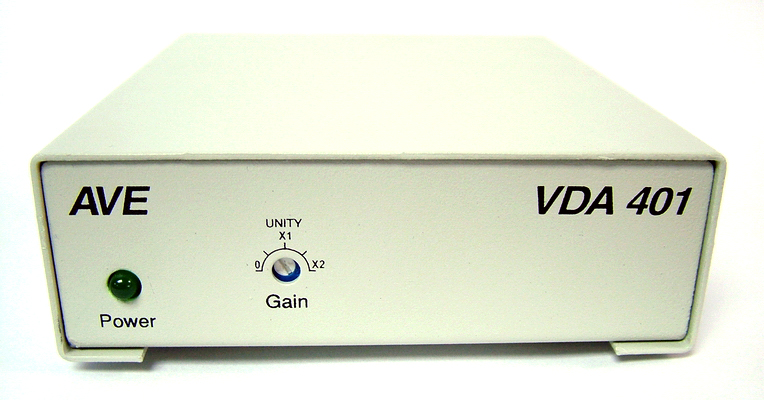

VDA401

The VDA401 is a high quality 1-input looping to 4-output video/audio distribution amplifier. All outputs are short circuit protected and each can drive a 75 ohm terminated load.

| Manual |



TDCT-Pro

The TDCT-Pro is the powerful time, date, character, and titler which has all the features of the original TDCT products (TDCT-T, mTDCT, TDCT-60, TDCT-Military, MTDCT, STDCT, mSTDCT, and mSVTDCT). Additional features include Master / Slave Time Date via RS-232 synchronization, 50th or 60th of a second field counter, 0.1 sec resolution, Alarming display via hardware alarm input and On-Screen 7 digit counter via hardware input.

| Manual | | Software download | | Software manual |

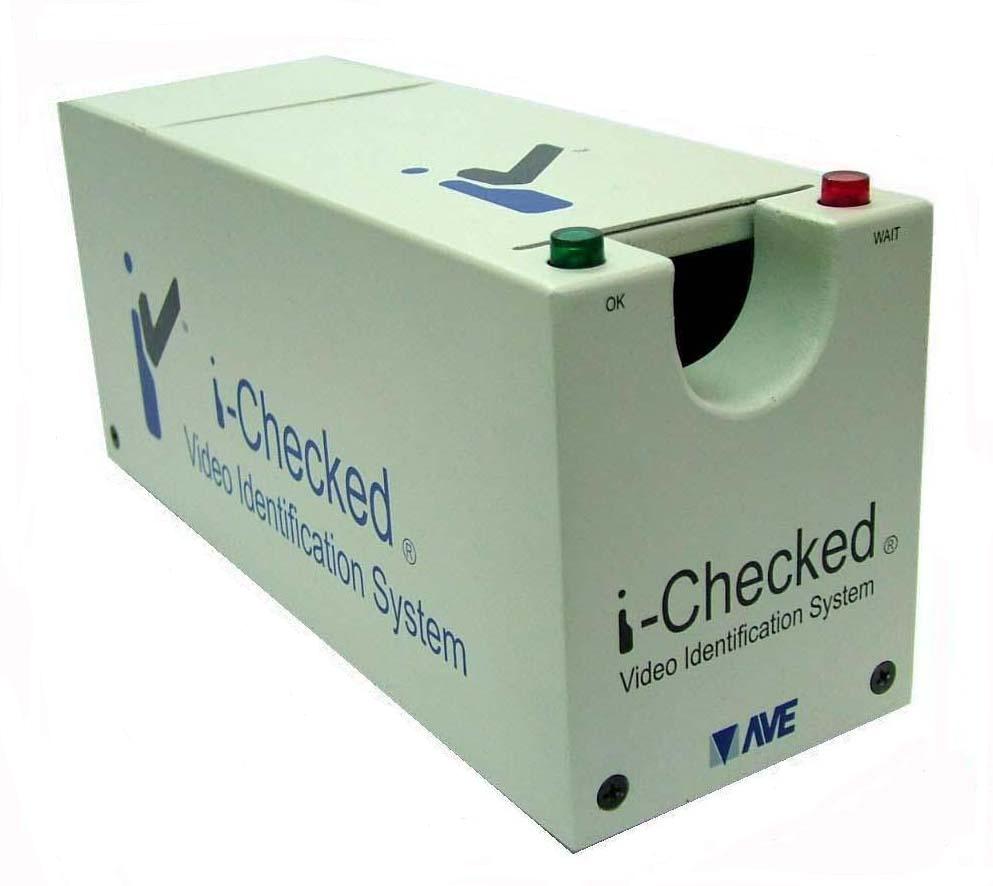

The i-Checked is the ideal product to help protect any business that sells or buys products where checking an I.D.(Driver's License) is required.In most places, selling alcohol, tobacco products, fire arms, and controlled substances to minors and other unauthorized people can result in heavy fines and penalties.

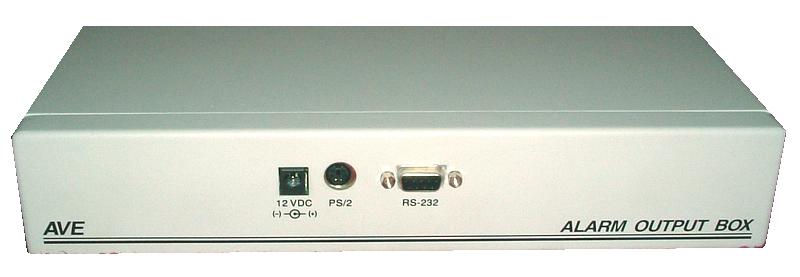

Alarm Output / Alarm I/O

The Alarm Output provides individual alarm outputs from the MTI Multiplexer or any RS-232 or RS-485 source. The Alarm I/O provides individual alarm outputs from the MTI Multiplexer or any RS-232 source.and inputs from an external source via the Optically Isolated inputs.  Address selectable for up to 256 devices on one serial port.  The Alarm Box has a master alarm output that is active when any of the other channels are active and has three 12-VDC outputs, one 5-VDC output, and an LED status.

| Manual |

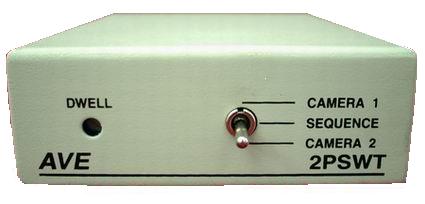

2PSWT (2-Position Switcher)

The 2PSWT is a 2 position sequencing, homing switcher. The front panel toggle switch allows for automatic sequencing, or homing of the 2 video inputs. Sequencing is controlled by a front panel recessed dwell pot. This pot is recessed to eliminate accidental adjustment. The dwell adjustment varies from approximately .2 second to 60 seconds.

| Manual |



4PSWT (4-Position Switcher)

The 4PSWT is a 4-position sequencing, alarming, bypassing, and homing switcher. The front panel toggle switch allows for automatic sequencing, homing, and bypassing of the 4 video inputs with the dwell adjustment variable from approximately 0.2 second to 60 seconds.

| Manual |



4PSWT-RS (RS-232 Controlled Switcher)

The 4PSWT-RS is a 4-position sequencing, alarming, bypassing, and homing switcher. The front panel toggle switch allows for automatic sequencing, homing, and bypassing of the 4 video inputs with the dwell adjustment variable from approximately 0.2 second to 60 seconds along with full control via the rear RS-232 serial port.

| Manual |

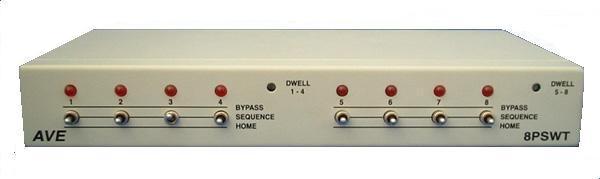

8PSWT (8-Position Switcher)

The 8PSWT is an 8 position sequencing, alarming, bypassing, and homing switcher. The front panel toggle switch allows for automatic sequencing, homing, and by-passing of the 8 video inputs. Sequencing is controlled by a front panel recessed dwell pot. This pot is recessed to eliminate accidental adjustment. The dwell adjustment varies from approximately .2 second to 60 seconds.

| Manual |

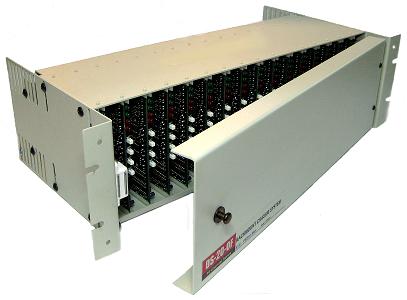

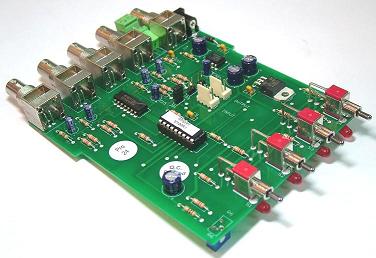

4PSWT(RS)-PCB Cascadable Nx1 / DS-20-OF 4PSWT Rack

Link multiple PCBs together to achieve any size video switcher you desire. Currently supported to 32x1 but can be expanded to a maximum of 256x1 cameras. The DS-20-OF rack will support up to 16 cards giving a maximum of a 64x1 video switcher. Can be used with the 4PSWT which has one alarm input per each bank of 4 cameras or the 4PSWT-RS which accommodates RS-232 commands in addition to manual switcher functions.

| Manual |



Multi Screen 16x3 Mini Matrix Duplex Multiplexers

9 and 16-Channel MultiDisplay Duplex Multiplexers with One Digital and 2 Analog Monitor Outputs. Integrate16X3 Mini Matrix Switching and multiscreen display gives this device versatility for non multiplexer applications. Optional internal VMD for real time looking display.

| MS-9 | | MS-16 | | MTIUDL Software |

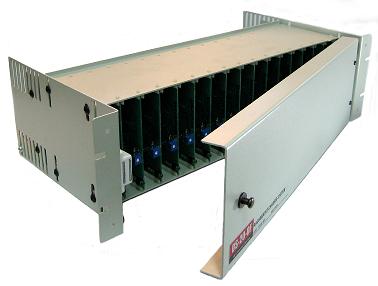

DS-20-OF DTT, DS-20-OF VDA401

Using the PCB only version you can add 16 cards in this convenient Standard 19 4 U Rack Frame. Includes rear daisy chain wiring for 12VDC power supply with common screw terminal connector and magnetic latching front door to access programming buttons.
